Product Description

RO Reverse Osmosis Pre-treatment High Flow Cartridges offer a significant reduction in investment costs compared to standard 2.5" cartridges in similar high flow cartridge applications such as pre-filtration for reverse osmosis water treatment plants. Each R0 RO pre-treatment high flow cartridge can handle up to 30 T/h, thus reducing the number of cartridges used and reducing the size of the filter housing.

INQUIRY

Applications	Widely used in various industries for pretreatment and filtration, it can effectively remove impurities, sediment and suspended matter and bacteria from water, thus achieving filtration purposes.
Filtration media	water suspension, particulate matter, water dirt, bacteria, bacteria and algae, rust, etc.

Working Principle

The high-flow cartridge filter uses a matching high-flow cartridge, under pressure, the original liquid passes through the cartridge, the filter residue remains on the wall of the filter material, and the filtrate flows out through the cartridge, which can effectively remove impurities, sediment, suspended matter and bacteria from the water. The filtration is thus achieved.

The design of the filter allows for the use of larger filter cartridges in each high-flow cartridge and reduces the investment in production costs compared to conventional models.
Product Advantages
- Stable operation

  Design

  Simple construction:

  Reliable operation
  Easy to maintain
- low filtration resistance, high throughput

  Efficiency

  Flux:

  low filtration resistance, high throughput High dirt interception capacity and long service life.
- Corrosion resistant materials

  Quality

  Quality:

  resistant to chemical solvents such as acids and alkalis. Strong and high temperature resistant, the cartridge is not easily deformed.
- Competitive price

  Safety

  Safety:

  Competitive price.
  low running costs, easy to clean.
  replaceable cartridges.

Technical parameters

Replace Pall high flow filter parameters Replace Parker high flow filter parameters

Model number	Inlet&Outlet	Specification	Wall thickness	structure type	Number of filter elements	Flow rate t/h	Material
LFD-1P	DN50	Φ219×1600	2	clamp type	1	30	Replace Parker high flow filter parameters
LFD-1P	DN50	Φ219×1600	2	movable flange	1	30
LFD-2P	DN80	Φ400×1700	3	flange	2	60
LFD-3P	DN100	Φ450×1750	3	flange	3	90
LFD-4P	DN100	Φ500×1750	3	flange + boom	4	120
LFD-4P	DN125	Φ550×1800	3	flange + boom	5	150
LFD-5P	DN150	Φ600×1800	3	flange + boom	6	180
LFD-6P	DN150	Φ650×1900	3	flange + boom	7	210
LFD-7P	DN200	Φ700×1950	4	flange + boom	8	240
LFD-8P	DN200	Φ750×2100	4	flange + boom	9	270
LFD-9P	DN250	Φ800×2200	4	flange + boom	10	300
LFD-10P	DN250	Φ850×2250	4	flange + boom	13	390

Model number	Inlet&Outlet	specification	Wall thickness	structure type	Number of filter elements	Flow rate t/h	Material
LFD-1-30	DN50	Φ219×1300	2	clamp type	1	30	carbon steel/304 stainless steel
LFD-1-30	DN50	Φ219×1300	2	movable flange	1	30
LFD-2-60	DN80	Φ377×1500	3	flange	2	60
LFD-3-90	DN125	Φ400×1700	3	flange	3	90
LFD-4-120	DN150	Φ450×1750	3	flange + boom	4	120
LFD-6-180	DN150	Φ500×1800	3	flange + boom	6	180
LFD-7-210	DN150	Φ550×1800	3	flange + boom	7	210
LFD-8-240	DN200	Φ600×1850	3	flange + boom	8	240
LFD-9-270	DN200	Φ650×1900	3	flange + boom	9	270
LFD-11-330	DN250	Φ700×1950	3	flange + boom	11	330
LFD-13-390	DN250	Φ750×1950	4	flange + boom	13	390
LFD-15-450	DN300	Φ800×2050	4	flange + boom	15	450

CATALOG VIDEO

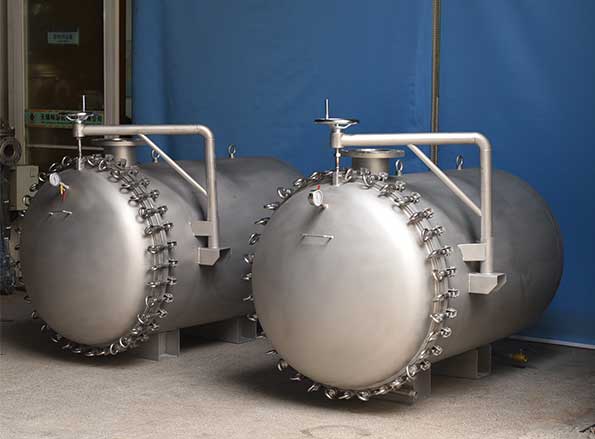

Workshop real shot
- Pictures
- Details
Customer Cases
- Water treatment site of a RO System in Canada

  Product: high flow housingModel: LFD-7-210
- Use site of a water treatment plant in Indonesia

  Product: Duplex filterSize: DN200
- Ultrasonic cleaning liquid filtration site for the electronics industry

  Use: Ultrasonic cleaning liquidFlow rate: 100t/h
