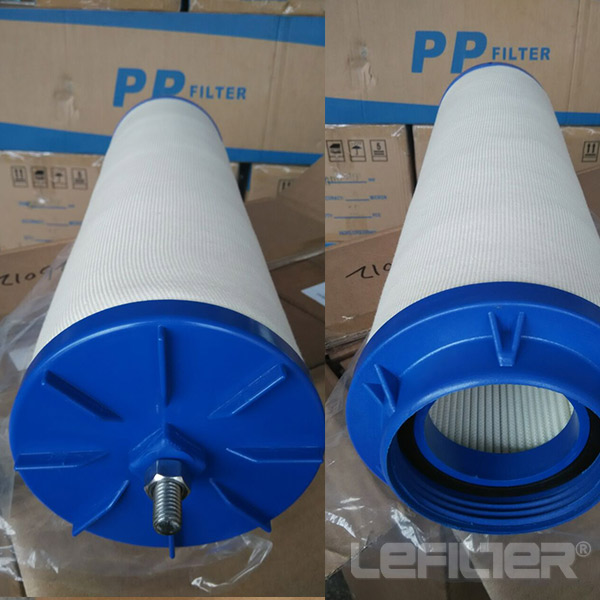

FEATURES coalescer filter cartridge:

• Cost effective particle and emulsified water removal from hydrocarbon fluids
• Easy installation and replacement with one-piece design
• Choice of Threaded Base or Open End cartridges
• Choice of All-Fiberglass Media or Combination Fiberglass and Pleated Media
• Field proven performance
• Ongoing qualification testing to meet changing commercial and military requirements
• Used as a first-stage cartridge in Filter/Separatos
• Remove particulates and coalesce water into large water drops
• Also available in screw base design

APPLICATION of coalescer filter cartridge

Coalescer cartridges are used primarily to coalesce emulsified water and remove particles from hydrocarbon fluids.
The largest single application is the filtration of aviation jet fuel.
They are also used with other types of fuels, process streams in refineries and petrochemical plants, and condensate streams where natural gas is produced.
Other liquids can be separated if they are immiscible, the specific gravities differ, and high concentrations of surface active agents are not present.
As a rule of thumb, if a sample of the mixture readily separates in an hour or two, a coalescer can probably be used.
If the mixture hasn’t separated after 24 hours, coalescing probably won’t work
