Product Description

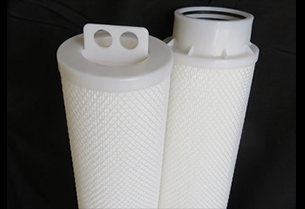

Parker high-flow cartridges are made of deep fine polypropylene or glass fiber membrane as filter media, with a large diameter of 6 inches / 152mm, no center rod, unidirectional opening, and specially designed to flow the liquid from the outside to the inside, ensuring that all contaminant particles are trapped outside the cartridge. The ultra-high flow rate design allows for a significant reduction in the use of cartridges and filters for the same flow rate application, resulting in significant savings in equipment investment costs and labor costs.

INQUIRY

Parker-High-Flow-Filter-Element Lefilter

Applications	RO pre-filtration, seawater desalination pretreatment; power plant condensate filtration; biopharmaceutical industry API, solvent, water filtration, etc.
Filtration media	Water suspended matter, particulate matter, water dirt, bacteria and algae, rust, etc.

Product Features

1. The combination of surface filtration and deep filtration can significantly reduce the number of cartridges and significantly reduce the size of the supporting filter shell compared with ordinary cartridges.
2. The combination of surface filtration and deep filtration can significantly reduce the number of cartridges and significantly reduce the size of the supporting filter shell compared with ordinary cartridges.
3. The design of convenient handle significantly reduces the time of cartridge replacement and makes cartridge replacement simple and portable.
4.The overall polypropylene design and hot melt welding treatment effectively prevent the end cap from falling off and secondary pollution.
5. The design of sealed interface reduces the risk of bypass flow and ensures the sealing and reliability of filtration.
6. The folded design increases the filtering area and makes the pressure drop significantly lower than that of ordinary cartridge.
7. The design of large diameter increases the dirt holding capacity, prolongs the service life and reduces the production cost.

Product Advantages

Large throughput cartridge; large dirt holding capacity; easy installation

Installation

Easy installation:

Compact structure, easy to move, convenient maintenance, smooth operation.
Sealed interface design,Adopt rubber sealing ring.

Interface

Sealed interface design:

Safe and non-toxic, eliminating leakage.
Using excellent materials.

Material

Using excellent materials:

The high-flow cartridge's external inlet and internal outlet construction allows for easy cartridge replacement while keeping contaminants trapped on the outside of the cartridge.
Ease of use of equipment.

Convenient

Ease of use of equipment:

Multiple cartridges can be packed in the filter housing, allowing a wide range of flow rates to be used.

Technical parameters

L series high flow water cartridge product selection instructions

Series Standards	Cartridge length specification	Structure form	Filtration accuracy	Seals
K-Series	20--20”	D- -Single seal	005--0.5μm	S--Silicone Rubber
	40--40”	S-- Double seal	010--1μm	E--EPDM rubber
	60--60”	R--External winding tape	030--3μm	V--Viton
			050--5μm	B--Nitrile rubber
			100--10μm
			200--20μm
			400--40μm
			700--70μm
			1000--100μm

Specification of replacement Parker high-flow filter cartridge

Filter Media	Polypropylene(PP)
Length	20"(508mm), 40"(1016mm), 60"(1524mm)
Outside Diameter	6 inch (152mm)
Inside Diameter	3.5inch(89mm)
Filtration Rating	1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 40μm, 70μm, 100μm
Support/Drainage	Polypropylene (PP)
End Cap Material	Glass fiber reinforced Polypropylene (PP)
Outside	Netting
Seal Material	EPDM, Buna-N, Viton
Maximum Operating Temperature	82°C
Maximum Differential Pressure	3.4Bar @ 82℃
Suggested Maximum Flow Rate	20"(508mm) - 30m³/h 40"(1016mm) - 50m³/h 60"(1524mm) - 70m³/h

Replacement Parker Models
MFNP005-40N	RSCP010-60SPP
MFNP010-40N	RSCP045-20EPP
MFNP050-40N	RSCP045-60NPP
MFNP100-40N	RSCP100-20EPP
MFNP050-40N-ITT	RSCP100-40EPP
RFP005-40NPX	RSCP400-40EPP
RFP010-40NPX	RSCP400-60SPP
RFP050-40NPX	RMG010-20EPP
RFP100-40NPX	RMG010-40EPP
RCP045-40EPP	RMG045-20EPP
RSCP045-40EPP	RMG045-40EPP
RSMG030-40EPP	RMG045-60EPP
RCP010-20EPP	RMG045-60NPP
RCP010-40EPP	RMG100-20EPP
RCP010-60SPP	RMG010-60SPP
RCP030-40EPP	RMG400-60EPP

CATALOG VIDEO

Product Display

pictures
Ship

Customer Cases

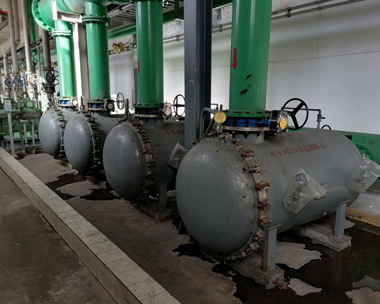

A coal chemical company in Hebei circulating water treatment site

Use: Security filter elementFlow rate: 20t/h
Henan a steel plant use site

Application: RO security filter circulating water treatmentFlow rate: 20t/h
After use by a water treatment company in Anyang

Use: Security filter circulating water treatmentFlow rate: 500m3/h
