Product Description

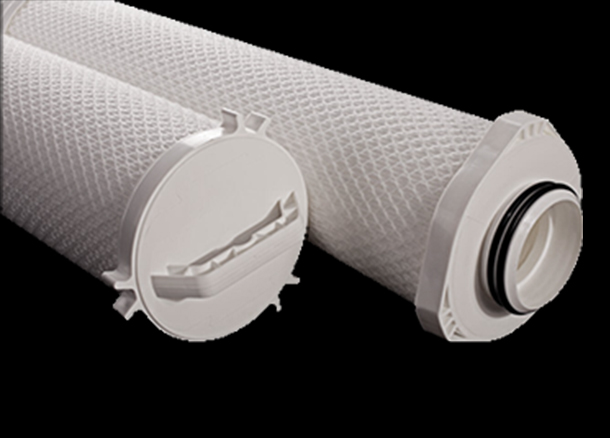

Replacement Pentair High Flow Cartridge Filters are developed by LEFILTER Filtration. The high flow water filter cartridges are available in 6.75" outer diameter and 40" & 60" length. The high flow filter cartridges have featured PP media, hard central core, and a proprietary o-ring seal. High flow cartridge filter possess pleated construction with an outside to inside flow that provides maximum flow rates with low pressure drop.

INQUIRY

Applications	Salt Water,Ink & Chemical,Municipal Water,Food & Beverage,RO Pre-filtration,Photographic,Boiler Condensate,Processing Water,Cosmetic & Medical etc.
Filtration media	Water suspended matter, particulate matter, water dirt, bacteria and algae, rust, etc.

Product Features

1. TAllows high flow rate of media to pass through the filter media, which has the advantages of high efficiency, low pressure loss and long life.
The external inlet and internal outlet structure of the high-flow cartridge makes it easy to replace the cartridge, while keeping the contaminants trapped outside the cartridge.
3. The internal pp support skeleton of the cartridge can withstand the differential pressure of 0.245MPa.
5. The β value of the filter element is more than 1000.
5. Multiple filter cartridges can be installed in the filter housing, which can be used in a wide range of flow rates, whether in start-up or continuous operation.
Product Advantages
- Large throughput cartridge; large dirt holding capacity; easy installation

  Installation

  Easy installation:

  Compact structure, easy to move, convenient maintenance, smooth operation.
- Sealed interface design,Adopt rubber sealing ring.

  Interface

  Sealed interface design:

  Safe and non-toxic, eliminating leakage.
- Using excellent materials.

  Material

  Using excellent materials:

  The high-flow cartridge's external inlet and internal outlet construction allows for easy cartridge replacement while keeping contaminants trapped on the outside of the cartridge.
- Ease of use of equipment.

  Convenient

  Ease of use of equipment:

  Multiple cartridges can be packed in the filter housing, allowing a wide range of flow rates to be used.

Technical parameters

Specification of replacement Pentair high-flow cartridges

Filter Media	Polypropylene(PP)
Length	40"(1016mm), 60"(1524mm)
Outside Diameter	6.75”(171mm)
Outer diameter of end cap	200mm
Filtration Rating	1μm, 5μm, 10μm, 15μm, 20μm, 50μm, 70μm, 100μm
Conductor layer/support layer	Polypropylene (PP)
End Cap Material	Nylon
Seal Material	Buna-N
Maximum Operating Temperature	82°C
Working pressure difference	0.38MPa / 21℃ /0.15MPa 82℃
Recommended Change out Differential Pressure	2.4bar / 20℃

Replacement P-all Model
ALN01-60B	ALPF-60020
ALN05-60B	ALPF-60050
ALN10-60B	ALPF-60100
ALN20-60B	ALPF-60200
AL40-60B	ALPF-60400
AL70-60B	ALPF-60700
AL100-60B	ALPF-60006

Order Information

Model	Material	Length	Filtration Rating	O-ring Material
Pentair Aqualine High Flow Cartridge Filter	P = PP Pleated	40 = 40"	0.6 = 0.6μm	E = EPDM
			1 = 1μm
			3 = 3μm
			5 = 5μm	B = Buna-N
			10 = 10μm
		60 = 60"	20 = 20μm
			40 = 40μm	V = Viton
			50 = 50μm
			70 = 70μm
			100 = 100μm

CATALOG VIDEO

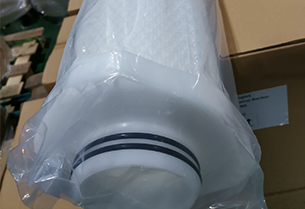

Product Display
- pictures
- Ship
Customer Cases
- A coal chemical company in Hebei circulating water treatment site

  Use: Security filter elementFlow rate: 20t/h
- Henan a steel plant use site

  Application: RO security filter circulating water treatmentFlow rate: 20t/h
- After use by a water treatment company in Anyang

  Use: Security filter circulating water treatmentFlow rate: 500m3/h
