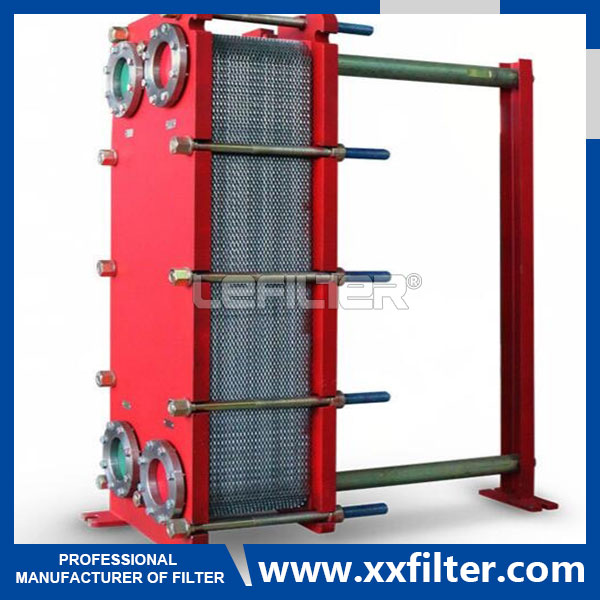

Plate Type Heat Exchanger
Introduction:Product Desc
We're here to help:
Easy ways to get the answers you need.
Product parameter:
Product Description
The plate type heat exchanger is an ideal device for heat exchange of liquid-liquid and liquid-steam.
It has such features as high heat exchanging efficiency,small heat loss,compact structure,light weight,small landing area,convenient installation and cleaning,wide application range and long service life etc.
Adaptability:
The dismountable plate type heat exchanger has outstanding adaptability.After the installation,the metal plate units can be increased or decreased to meet the technological requirements for expansion or contraction.
Low retention:
As the flow channel is smaller and the retention is smaller,it can be rapidly started.The response is rapid when there is any change of control and operation and the equipment weight is greatly reduced.
| Type |
Malt extract capacity (t/h) |
Cooling consumption (kacl/h) |
Malt extract inlet and outlet diameter (t/h) |
Ice water inlet and outlet diameter(t/h) |
Heat exchanger area(m2) |
Outine dimension (mm) |
weight (kg) |
|
| 4-J-70B | 20 | 1740000 | DN100 | DN100 | 70 | 150×56×160 | 900 | |
| 6-J-105B | 30 | 2610000 | DN120 | DN120 | 105 | 140×69×180 | 1450 | |
| 6-J-140B | 40 | 3480000 | DN120 | DN120 | 140 | 150×59×180 | 1700 | |
| 6-J-175B | 50 | 4350000 | DN120 | DN120 | 175 | 160×69×180 | 1950 | |
| 8-J-210B | 60 | 5220000 | DN200 | DN200 | 210 | 240×96×191 | 2750 | |
| 10-J-280B | 80 | 6960000 | DN225 | DN225 | 280 | 240×107×200 | 3550 | |
| 10-J-350B | 100 | 8700000 | DN225 | DN225 | 350 | 260×107×200 | 3880 | |
| 13-J-420B | 120 | 10440000 | DN250 | DN250 | 420 | 260×115×210 | 4420 | |
Xinxiang Lifeierte Filter Corp.,Ltd （Stock code：837936）is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
